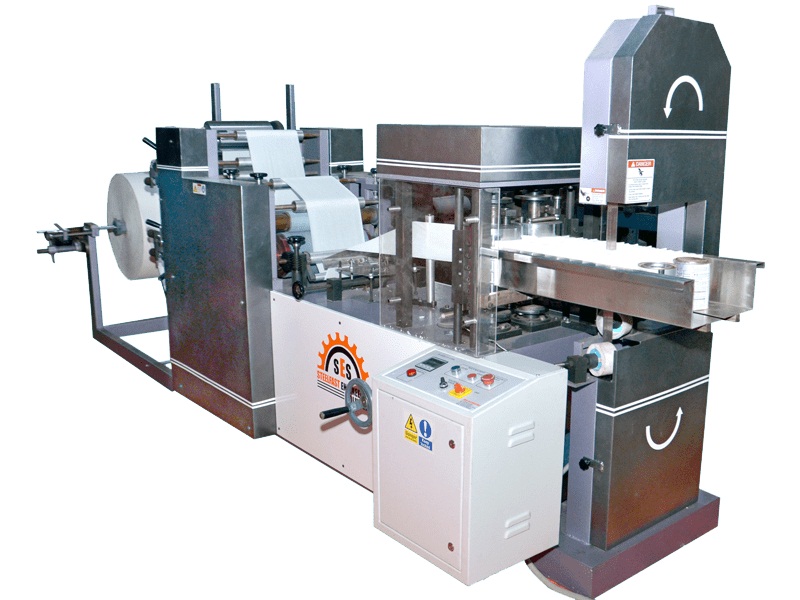

We “Tech Pro Engineering Services ” are specialist in Manufacturing of Tissue Paper Napkin Making Machine.This Paper Napkin Machine is used to fold the jumbo roll into the Square or Rectangular paper napkin. It's a Automatic Tissue Paper Making Machine Because of the machine system includes printing, embossing, counting and folding.
Features of Tissue Paper Napkin Making Machine :
Embossing unit having metal to paper ball type in either full or border pattern.
Electronic counting for absolute accuracy.
Integrated Band Saw to cut two lanes into four stacks on delivery deck.
Band saw & motor speed varies with drive.
Machine having one main motor (single phase/three phase) & auxiliary motor for band saw unit.
Napkin paper having width size 220 mm to 400 mm as per requirements of customer.
Easy operating & Zero maintenance.
The speed of the automatic paper napkin folder is controlled by the frequency drive (with cutting band saw). The counting could be varied according to the requirement.
This high speed paper napkin folding machine is also fitted with static eliminator.
Spectfication of Tissue Paper Napkin Making Machine
| Working Width | 220 to 400 (as per requirement) |
| Printing Unit | As per requirement |
| Embossing Unit | As per requirement |
| Parent Roll Diameter | 1200mm |
| Folding size | ¼ |
| Space Required | 6.5 Feet X 15 Feet |
| Speed | 400 sheets per min. (speed.varies according |
| to different paper) (2 lacks per 8 hrs.) | |
| Installed Power | AC 440V/220V, 50 Hz, 2.2 kw |
| Transmission | Timing Belts |
| Controlling System | 2.2 kw Frequency drive |
| (MAKE - CROMPTON GREAVES) | |
| Machine Weight | 2000 kg |
| Counting Display & Machine Speed Display Available Futures |
